Cascading major design changes caused San Onofre nuclear reactor steam generator failures and radiation leak

Major steam generator design changes by Southern California Edison (SCE) are the likely cause of radiation leaks and unusual accelerated tube wear in the San Onofre nuclear power plant’s four steam generators, states a new study by nuclear expert Arnie Gundersen.

San Onofre has been shut down since January after plant operators discovered radiation leaking into the air. The leak was caused by a tube rupture in one of the new Unit 3 steam generators. Reactor Unit 2 has been offline since January 9th.  Unit 3 has been offline since January 31st, less than one year after it was installed. Both units have premature steam generator tube wear.

No rolling blackouts are predicted for Southern California due to the shutdown.  California’s electric grid operator has developed a number of contingency plans to avoid blackouts. See “California ISO Contingency Plan“.  The annual ISO Transmission Plan states that with San Onofre offline, there are “no stability concerns under normal or emergency condition.”

Nuclear expert Arnie Gundersen reviewed SCE and nuclear industry documents and found a series of cascading major design changes that lead to the steam generator failures:

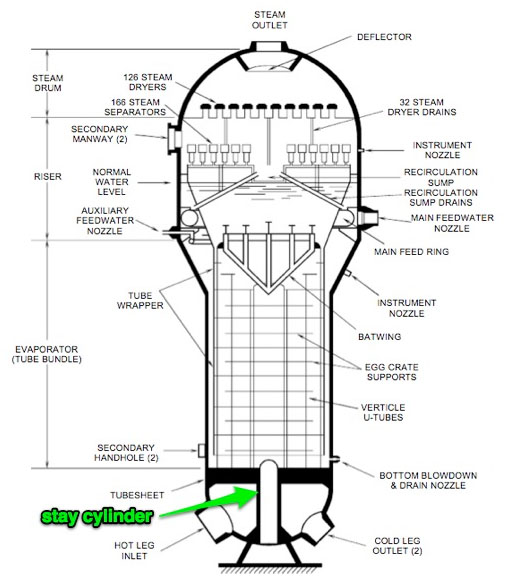

Typical Combustion Engineering Steam Generator

Typical Combustion Engineering Steam Generator

  • The redesign crammed almost 400 additional tubes into each of the generators.
    • These additional tubes required additional holes be drilled in the “tubesheet,” the critical radiation barrier that serves as an enormous foundation supporting the entire generator.
    • Making room for these additional tubes required the removal of the critical supporting “stay cylinder”. This support pillar was designed to secure the generator and prevent vibration – exactly the kind of vibration that seems to be behind the tube degradation.
    • All of these changes necessitated pressure and flow changes in the generator’s operation.

This Fairewinds Associates study, San Onofre Cascading Steam Generator Failures Created by Edison, is the second in a series commissioned by nuclear watchdog Friends of the Earth.

The study also confirms that both reactor Units 2 and 3 have identical specifications and were subject to identical operating conditions.  SCE has been trying to draw distinctions between the two reactors, but late yesterday admitted that Unit 2 showed “additional minor tube wear” that was “similar to the type of wear that was seen in Unit 3, but at a very low level.”

“Southern California Edison continues to try to downplay the issue, even as they finally admit the truth – there is no difference between reactors 2 and 3 and they have the same problems” said Shaun Burnie nuclear specialist to Friends of the Earth. “This whole crisis arose because of substantive changes made in the design and fabrication of key components. The NRC has to date adopted the Edison position that there is a difference between reactors 2 and 3. That was always wrong and irresponsible and now we have confirmation from Edison about what our analysis has been saying for weeks. Here’s a tip: when your nuclear reactor is springing leaks and radioactive pipes are deteriorating twenty times faster than they should, it’s a big deal, and no amount of nuclear spin by Edison or the NRC can hide that fact,” said Burnie.

The report notes that these dramatic changes were all portrayed to the Nuclear Regulatory Commission as an exact replacement of the original steam generators. The original generators lasted over 20 years, while the new ones were falling apart within less than 20 months. The report also found no difference between Units 2 and 3.

“In Fairewinds’ opinion, the vibration between the tubes caused the steam generator leaks and degradation… and was due to the simultaneous implementation of numerous unreviewed fabrication and design changes to the replacement steam generators by Edison/MHI. The NRC can no longer justify its position of treating the problems at the reactors as separate. A root cause analysis of both reactors – not just unit 3 was always necessary – now Edison have provided the evidence as to why,” author of the report Arnie Gundersen stated.

Gundersen is a 40-year veteran of the nuclear power industry. A former nuclear industry senior vice president, he earned his Bachelor and Master Degrees in nuclear engineering, holds a nuclear safety patent, and was a licensed reactor operator. During his nuclear industry career, Gundersen managed and coordinated projects at 70-nuclear power plants around the country.

Friends of the Earth and local citizen’s groups released a new video ad campaign last week targeting Southern California Edison. The ad calls on citizens to let the utility know that their families come first – and that they must not restart the troubled San Onofre nuclear reactors currently facing serious questions about safety and secrecy. The citizen’s groups include Citizens Oversight Projects, Committee to Bridge the Gap, Physicians for Social Responsibility – Los Angeles, Residents Organized for a Safe Environment (ROSE), San Clemente Green, SanOnofreSafety.org, and the Peace Resource Center of San Diego.
